Product Introduction

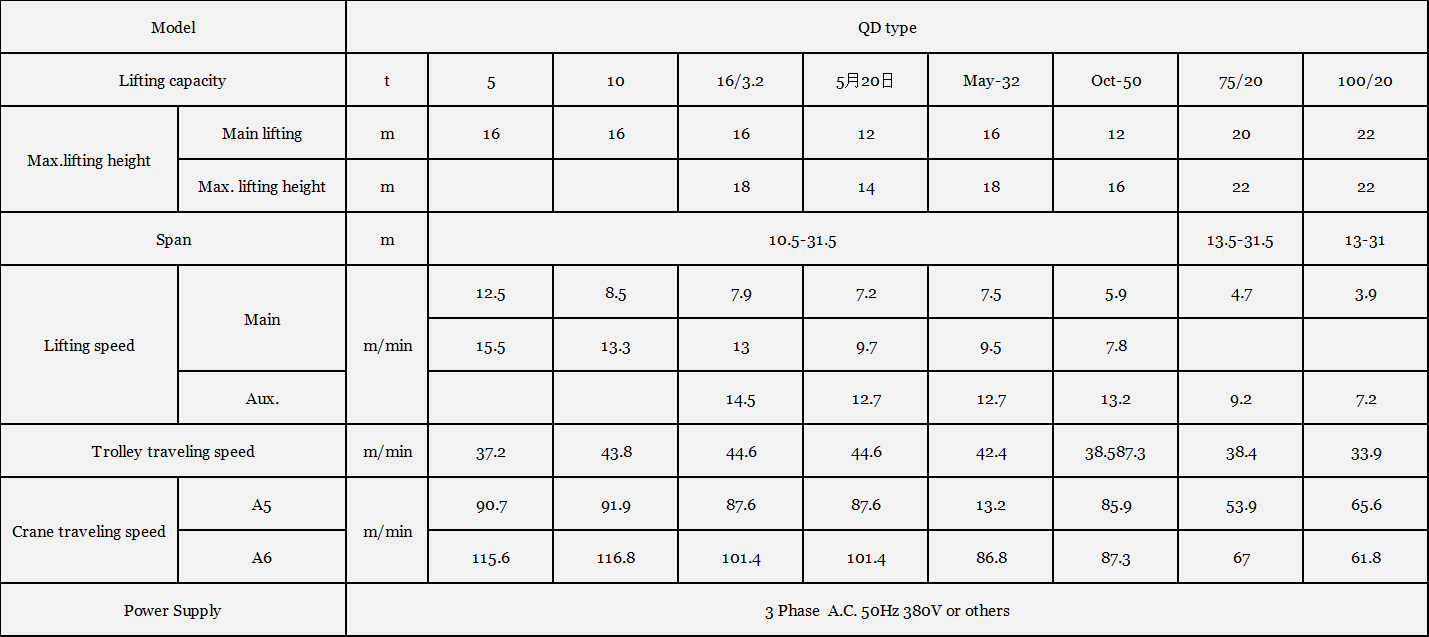

Specifications

Note: Can be customized design according to your needs.

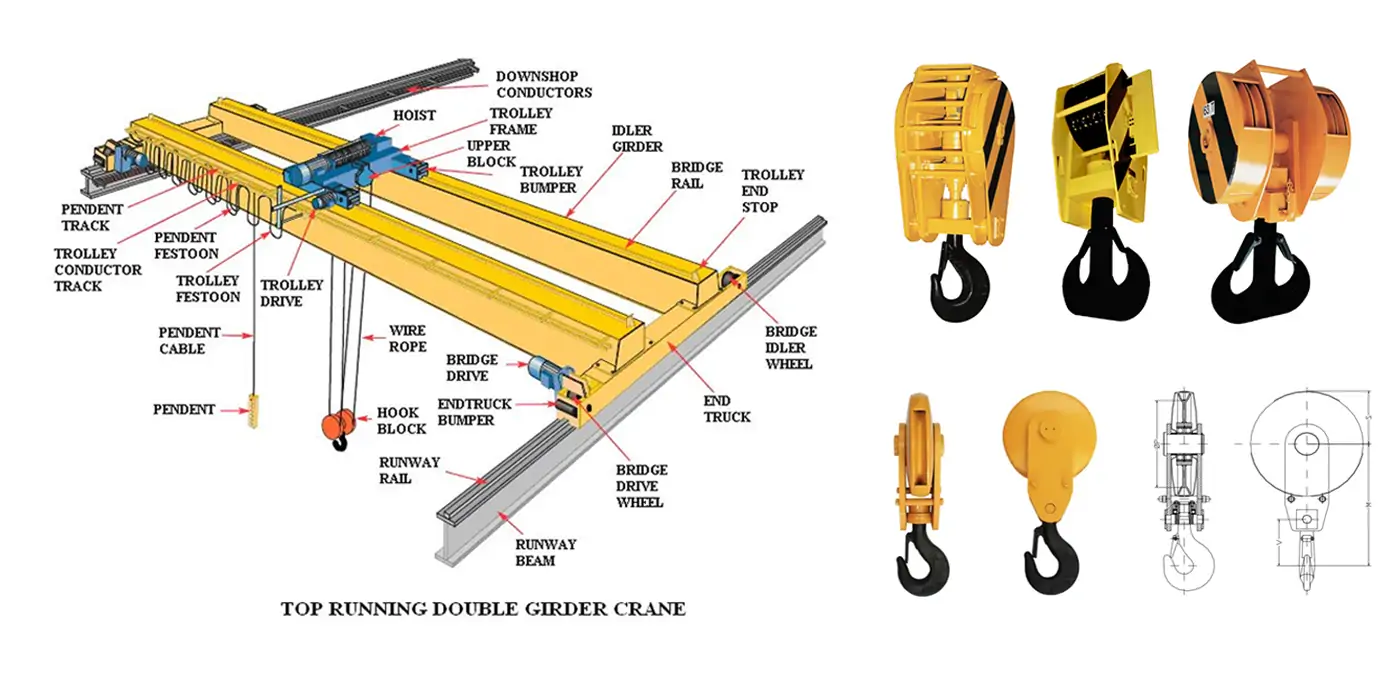

Hook Overhead Crane Parts

Hook overhead crane mainly consists of five core components: metal structure, hoisting mechanism, operating mechanism, electrical system, and safety device.

The trolley travel mechanism is on both ends of the bridge. It can drive the overhead crane along the factory or dock along the rails. This allows the overhead crane to adjust its working position over a wide range. The trolley moves along the rails, which allows flexible positioning of the lifting mechanism. It is responsible for the vertical lifting and lowering of heavy loads. This ensures smooth and safe lifting thanks to a precise transmission system and a braking device. The electrical system provides power to each mechanism of the overhead crane. It also precisely controls its operation, including motors, controllers, limit switches, etc., to ensure safe and accurate operation.

Send Message

Related Products

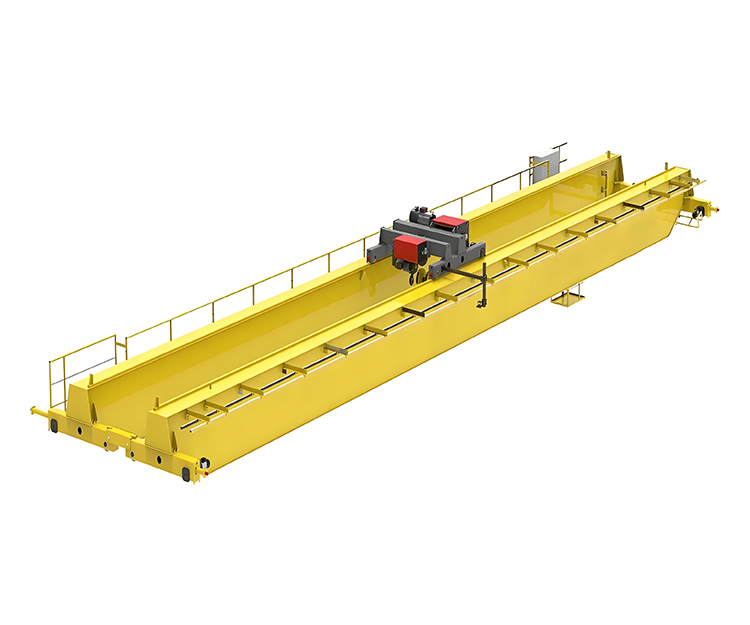

LH&NLH Model Electric Hoist Bridge Crane

Model electric Hoist Overhead Crane has such features as tight dimensions, low building headroom.light dead weight and light wheel load They are applicable to the transfer, assembly, check and repair as well asload and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouse.goods yard and power station They can also be used instead of common double-girder overhead crane atproduction workshop in light textiles or food industry. lt has two kinds of classiication, that is, light andmedium The working ambient temperature is generally -25℃ ~ 40℃ It is forbidden to work in environment with combustible,explosive or corrosive media.

View More

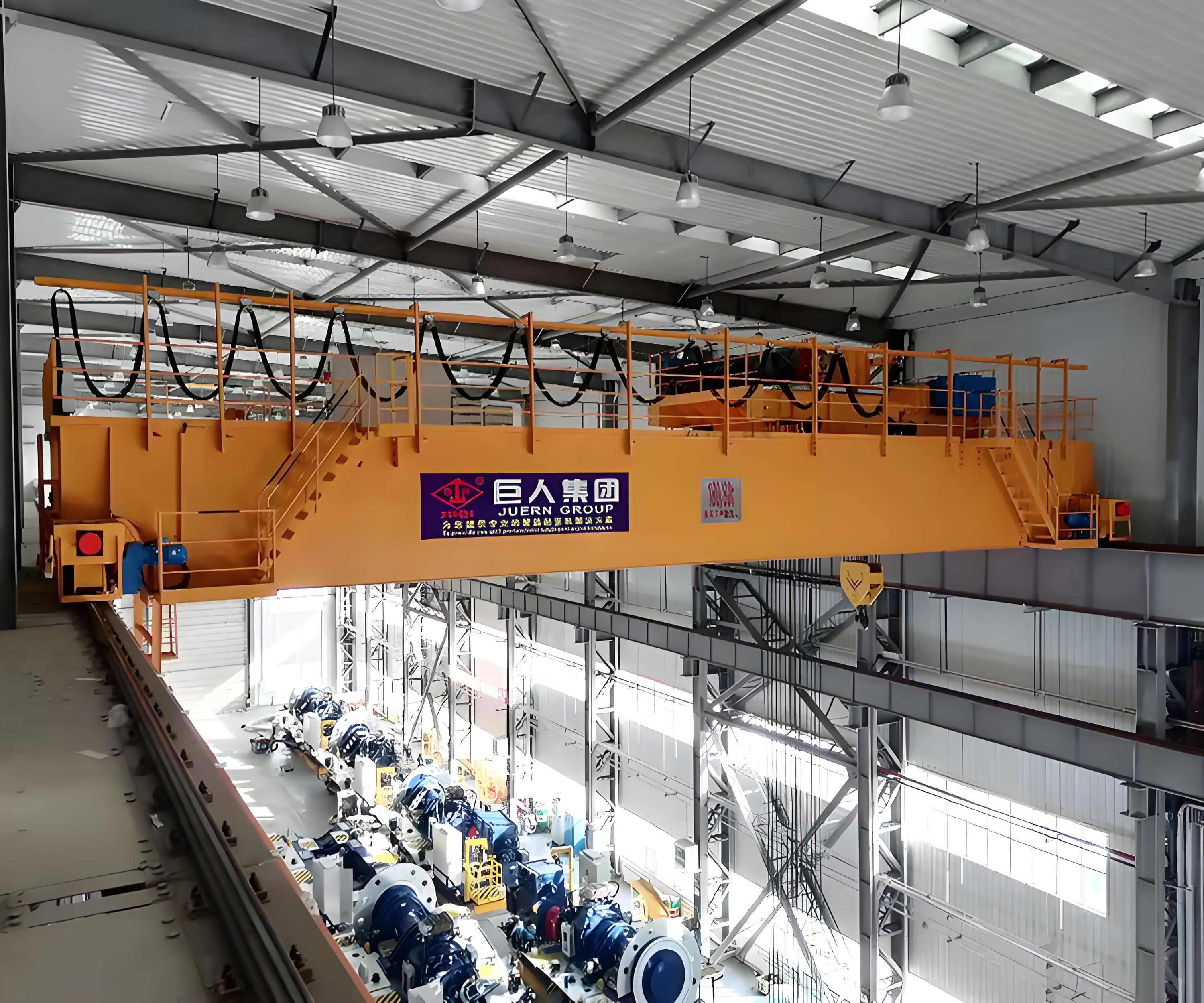

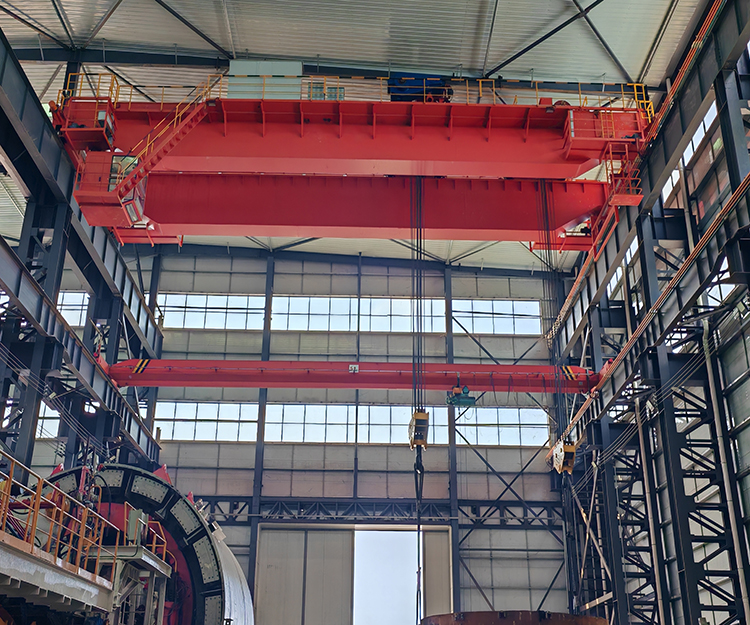

QD Double Girder Hook Overhead Crane

QD Double Girder Hook Overhead Crane is a kind of heavy-duty industrial overhead crane, which adopts a double main girder structure and is equipped with hooks as spreaders to realize precise lifting and horizontal movement. It is widely used in factories, warehouses, steel mills, hydropower stations, and other places for lifting and handling materials.

View More

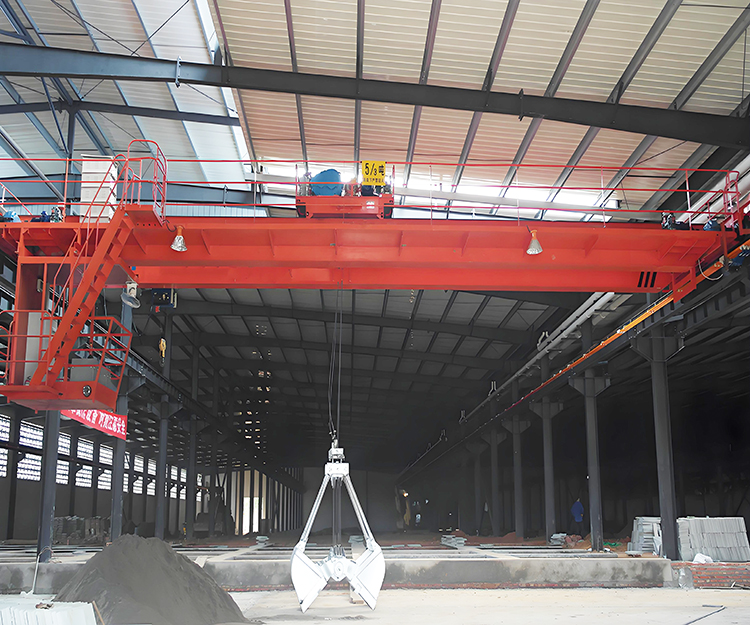

QZ Grab Overhead Crane for Waste Handling

QZ Overhead crane with grab is widely used in loading goods in port,factory, workshop and power plant. The work classification is heavy.the group classification ofthe crane is A6. The direction ofplatform door to the driver's cap is:side, end and top. The lifting capacity includes the weight of the grab. The open direction ofthe grap is:paralleling with the beam and plumbing with the beam, this design is theplumbing type.

View More
