Rail Mounted Gantry Crane

Lifting capacity: 30-50 ton	Span: 35 m
Lifting height: 12.5 m~18.5 m	rolley Travelling: 60-70 m/min

jurencrane@gmail.com

Send Message

Product Introduction Specifications Send Message Related Products

Product Introduction

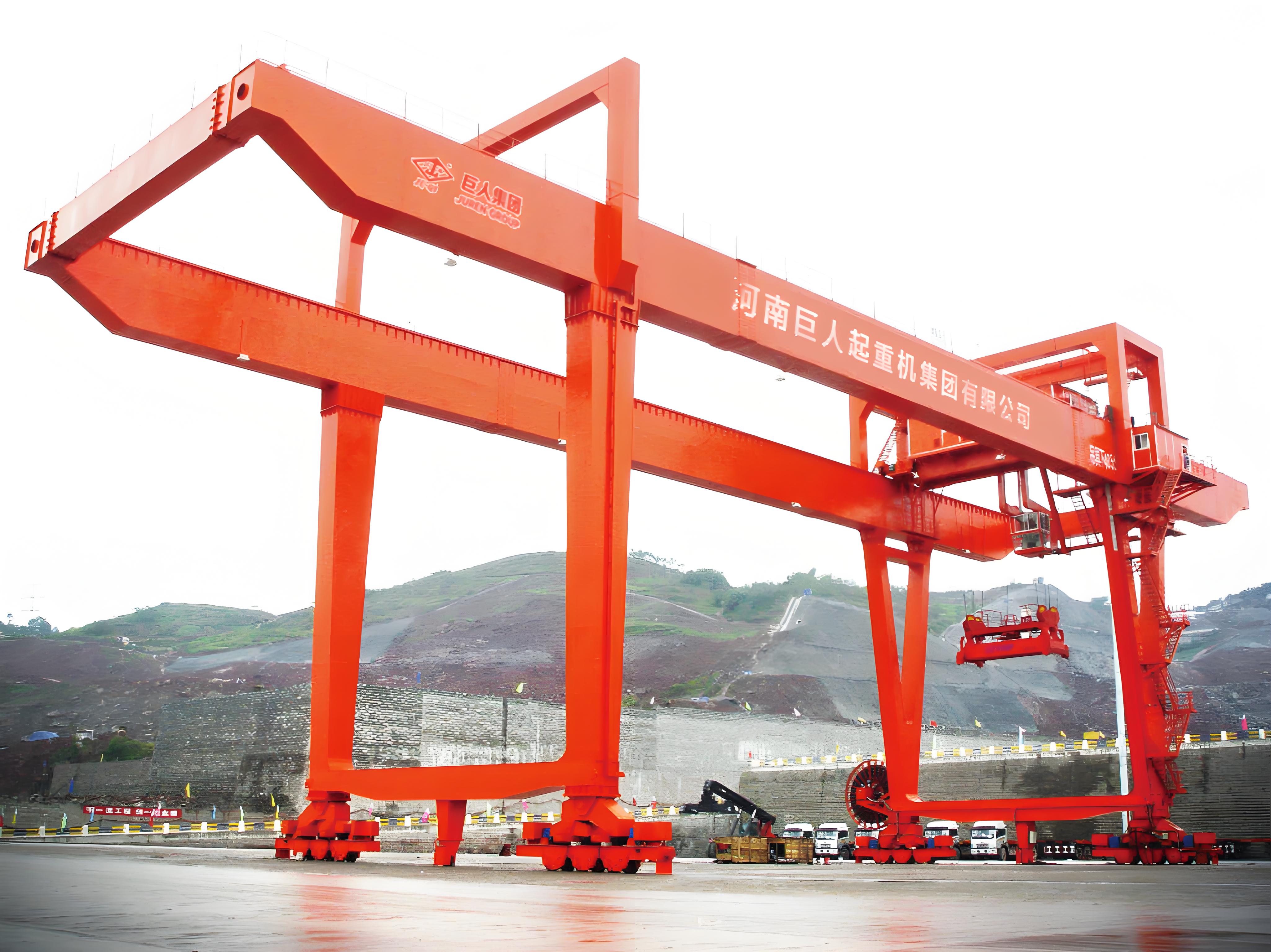

The rail mounted gantry crane is applicable to remove, load, and unload international standard containers. It is a highly efficient loading and unloading equipment, mainly for in ports, docks, and inland container yards. The main function is stacking, handling, and transshipment of containers from ships to land transport. The main beam is the core structure that bears the weight of the container. It is usually a box-shaped section to ensure strength. Its outriggers connect to both ends of the main beam. Thus, it could support the entire RMG crane and allow it to move along tracks on the ground.

d4c75ab30dfe831b5a46c5c918324757

The electric drive adopts the unique technology of full digital AC frequency conversion and PLC speed regulation control with flexible control and high precision. Standard bought-in components from well-known brands at home and abroad ensure overall quality.

The design, manufacture, and inspection comply with Chinese standards and international standards such as FEM, DIN, IEC, AWS, etc. Juren’s RMG has the characteristics of multiple functions, stability, reliability, a wide range of operation, easy operation, and maintenance.

Specifications

Cpapcity of Spreader			Ton	30.5	35	40.5	50
Working Duty				A6	A6	A6	A6
Span(m)			Meter	35	35	35	35
Base(m)			Meter	16	16	16	16
Lifting Height (m)			Meter	15.4	15.4	18.3	18.3
Speed	Hoisting	With Full Load	m/min	12	12	18	18
	Hoisting	Max. working Lcad of Wheel		24	24	36	36
	Trolley Tavelling			60	60	70	70
	Gantry Traveling			45	45	45	45
Total Power			kW	~200	~230	-255	~300
Max. working load of Wheel			kN	260	260	280	300
Crane Rail				P50	P50	P50	QU80
Power Supply				3-phase AC 50Hz 380V
